Micro Tubes COD Corrugated Optic Duct For Highway Threading Pipe
Machine
High speed extrusion system for communication tube coating layer
COD communication cluster tubes are a new type of micro-cable
protection sleeve. They are made by extruding HDPE (high-density
polyethylene) resin and have the following advantages:
1. Strong compression resistance: The inner tubes of COD tubes are
tightly attached to the inner wall of the outer tube during the
production process. The inner tubes are smooth, which makes the
construction convenient.
2. Strong compression resistance: The inner tubes of COD tubes are
tightly attached to the inner wall of the outer tube during the
production process. The inner tubes are smooth, which makes the
construction convenient.
3. Strict pressure testing: The inner tubes of COD tubes are
pre-tested with strict pressure before being used in the production
of the complete COD tubes. In addition, the special helical shape
of the outer tube enhances the compression resistance of the
traditional PE straight tubes. Therefore, the compression
resistance of COD tubes is extremely strong. Even in the event of
an earthquake or building collapse, it can ensure safety.
4. Strong acid and alkali resistance: COD tubes have extremely
strong acid and alkali resistance, so they can be
corrosion-resistant during the laying process in sea water or
wetlands, thereby protecting the communication line.
5. Long production length: The production length of COD tubes can
reach more than 1,000 meters per roll, thereby improving the laying
efficiency of communication lines.
The advantages and functions of the cluster tube and COD tube
equipment:
Advantages:
• High efficiency in production and processing.
• Stable performance and reliable quality.whatsapp 008615753291269
Functions:
• It is mainly used for the production and installation of pipeline
systems, providing a stable and reliable pipeline connection.
• Can meet the requirements of different engineering applications,
ensuring the smooth operation of the pipeline.
Cod communication bundled tubes are mainly used in the field of
underground pipelines in communication lines, especially in highway
optical cable pipelines. It can also be used in municipal projects,
such as threading, optical cable threading, construction projects,
etc. In the industrial field, Cod communication cluster pipes can
be used as wiring pipes in chemical industry, environmental
protection and other industries. In addition, it can also be used
in electrical and telecommunications engineering as a protective
tube for various power cables.
Cod communication bundle tube outer diameter dimensions can vary
based on specific product models and specifications. The outer
diameter of common Cod communication bundle tubes is generally
between 25mm and 2200mm.
In actual applications, the specific outer diameter size may vary
due to different manufacturers, product series and customer needs.
If you need to know the outer diameter size of a specific model or
specification of Cod communication bundle tube, it is recommended
to refer to the technical specification sheet, product manual of
the relevant product or contact the manufacturer to obtain accurate
information.
whatsapp 008615753291269

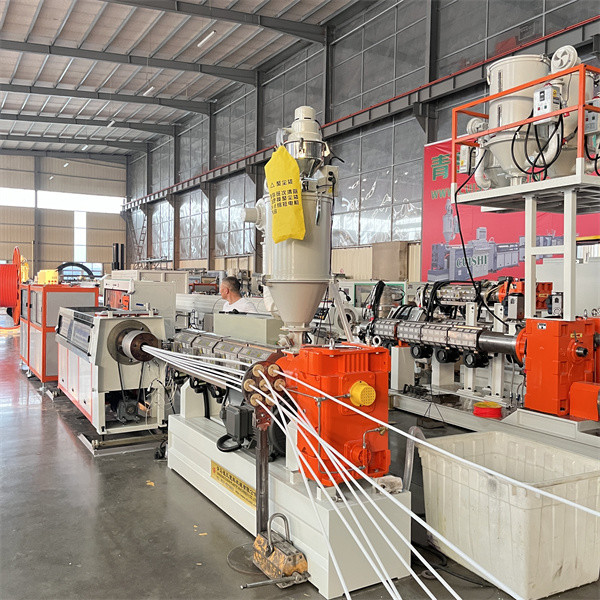

The cod pipe coating pipe line
Co-extrusion Line for the outside pipe with five pipes
Unload pipe table 7 sets
Guiding Device( guiding pipes go into the combined extruder) 7 sets
Combined System: 1 unit
SJ-90/30 Single Screw Extruder 1 set
This extruder is mainly used for the extruding of pipes and it is
equipped with a hard tooth surface speed reducer, both the gear and
the axis are made of alloy steel and have been processed by
nitriding and grinding. The material of the screw and the charging
barrel is 38CrMoALA with nitrogen treatment. The screw adopts
special type protective screen plasticization panel, it has
autoregulation digital display switchboard and a Siemens contactor.
The temperature control meter is RKC made in Japan. Its main engine
is frequency controlled and it is equipped with an automatic
charging machine.
Main technical parameter:
Screw diameter: ф90mm
L/D 30:1
Rotate speed of the screw: 10-90r/min
Extruding output(max): 160-200kg/h
Heating power: 28KW
Main engine power: 45KW
Heating sections 3
Heating type stainless steel electric heating unit
Mouth mould control temperature Stepless voltage regulator
temperature
Heating power 12kw
Mould
Pipe diameter 110mm
Mould type Spiral Approach
Mould material Copper, forming surface polishing
Pipe-forming Machine 1set
Forming mode: vacuum forming
Vacuum air pump power: 5.5KW
Transmission power: 3KW
Mode of speed regulation frequency control (delta)
Azimuth adjustment 3D adjustment
Production speed 0.5-3m/min
Hauling Machine 1set
Effective hauling length 1200mm
Mode of speed regulation frequency control(simence Brand)
Hauling power 3.7KW
Hauling speed 0.5-3m/min
Hauling form: slab rubber type
Pre-warning method lamp pre-warning
