Plastic Extrusion Equipment Manufacturers , PVC Rain Gutter Making Machine

Ask Lasest Price
Brand Name :	Wangyuan
Model Number :	Fiber Braided Reinforced Pipe Hose Extrusion Making Machine
Certification :	SGS
Price :	12333-32388usd
Payment Terms :	TT , L/C
Supply Ability :	40 sets
Delivery Time :	50 days

Add to Cart

Product Details
Company Profile

Plastic Extrusion Equipment Manufacturers , PVC Rain Gutter Making Machine

Plastic Extrusion Equipment Pvc Pipe Extrusion Machine Pvc Extruder Machine

PVC rain gutter pipe making machine / plastic pipe extruder / Double screw extruder

PVC Pipe Machine / Plastic Machinery / Production Line / Extrusion Machine

PVC pipe extrusion machine can produce PVC pipe size range from Ø16 to Ø630mm.PVC pipes can be used for water supply, water drainage, liquid transportation, electric conduit, etc.

We have different kinds of PVC pipe making machine to produce different kinds of PVC pipes: UPVC pipe, CPVC pipe, PVC-O pipe, PVC-M pipe, etc.We can provide customized PVC pipe, such as conical or parallel twin screw extruder, double strand or four strand.

Model	PVC63	PVC160	PVC110	PVC 315	PVC630
Diameter Range	16-63mm	75-160mm	20-110mm	200-315mm	350-630mm
Extruder Model	SJSZ51-105	SJSZ65/132	SJSZ65/132	SJSZ80/156	SJSZ92/188
Extruder Capacity	70-120kg/h	150-250kg/h	150-250kg/h	300-400kg/h	500-600kg/h
Motor Power	22	37kw	30kw SERVO MOTOR	55kw	90kw

auto Material Feeder

To feed material into extruder

Twin Screw Extruder

World famous brand electrical component such as Siemens, Schneider, ABB etc

High torque gearbox

Siemens motor achieved global after service;

Zhousan screw and barrel;

Intelligent PLC controlling system with human-friendly interface.

Die head & Mold

40Cr material

Complete set include extrusion die head, Slotting & water ring type calibration sleeve

Apply to PVC single,dual,Four cavity extrusion.

Vacuum calibration tank

Include full set of vacuum and water pump

length 6000mm

Haul off

Upper and lower caterpillar is driven separately by the frequency inverter

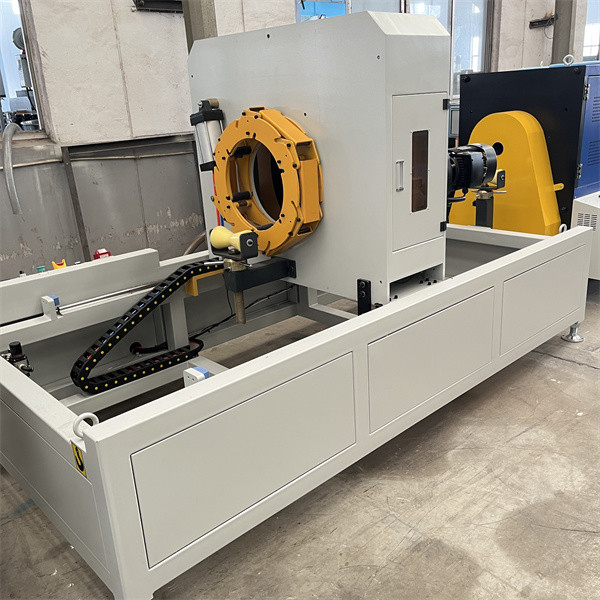

Cutter

No dust cutter:enter knife by hydraulic drive

Cutting saw: steel alloy, specific for cutting U-PVC pipe.

Equipped cast aluminum compacted block for accurate cutting

Synchronous control

Stacker

Stainless steel as touching material

Discharge driving by air cylinder
