    Automatic Feeding Plastic Pipe Machine 200mm-500mm Plastic Pipe Production Line

    Ask Lasest Price
    Brand Name : wangyuan
    Model Number : PE pipe extrusion line equipment
    Certification : SGS
    Price : 399999-443333usd
    Payment Terms : L/C T/T
    Supply Ability : 5 set per month
    Delivery Time : 50days
    • Product Details
    • Company Profile

    Automatic Feeding Plastic Pipe Machine 200mm-500mm Plastic Pipe Production Line

    200-500mm PE Supply Water Gas Pipe Extrusion Machine Plastic Pipe Production Line


    Drainage Pipe Extrusion Machine PE Flexible Tube Machine Water Supply Pipe Machine

    Plastic Pipe Extruder Machine Electricity Pipe Machine Hdpe Pipe Line Wire Extruding Machine

    PE Pipe Making Machine Pipe Manufacturing Plant Hdpe Extruder Machinery


    ItemDescriptionQtyFob Qingdao Price
    HDPE Pipes Production Line(200-500mm)
    1Automatic feeding machine1sset
    2Hopper dryer1set
    3Single-Screw Extruder type SJ75/381 set
    4Moulds(including calibrators)1 set

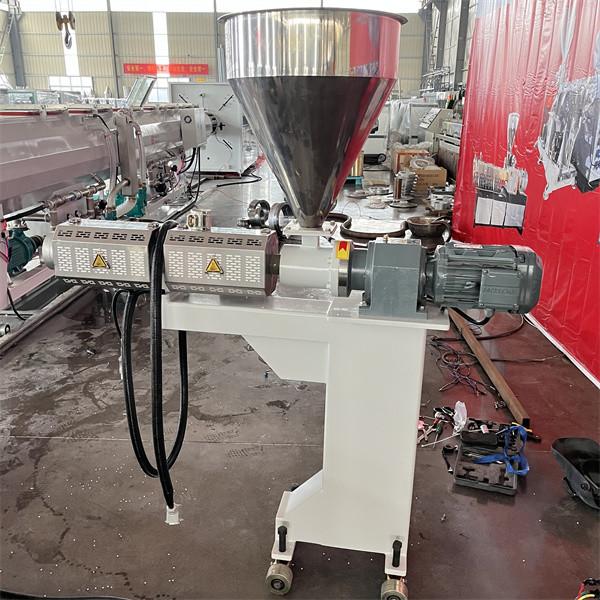

    5Marking line co-extruder type SJ30/251 set
    6Vacuum calibration tank 9m2 set
    7Extended water spraying cooling tank 6m3 set

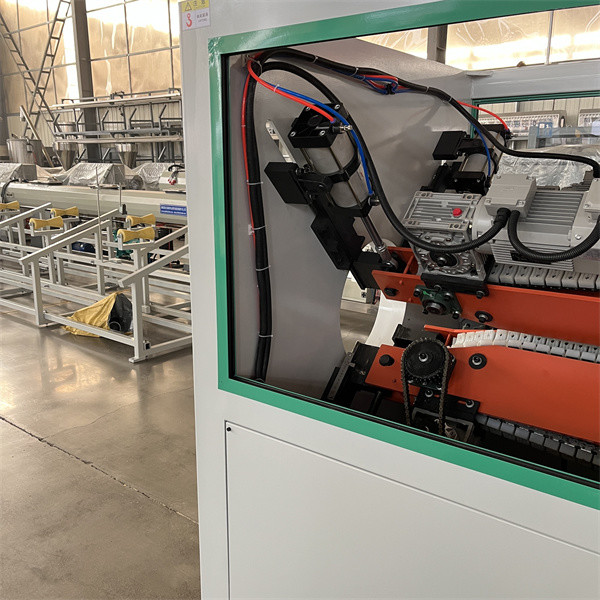

    86-Pedrails Hauling off Machine1 set
    9Planet cutting machine1 set
    10Pipe stacker 12m1 set
    PE pipe production process:
    Raw material + Color Masterbatch → mixing → vacuum feeding → raw material drying → single screw extruder → color line extruder →
    screw mould → sizing sleeve → spray vacuum setting box → spray cooling water tank → code spraying machine → crawler tractor →
    finished product detection and packaging

    Single Screw Extruder or Double Screw Extruder(Customerize):

    Screw:
    Diameter of screw: Ф75mm; L/D: 38/1;Barrel:Material of screw: 38CrMoAlA;

    Driving motor:Motor power: 110kW; Type of motor: AC;

    Vacuum calibration tank:

    Vacuum calibration system
    Water level control system
    Water temperature control systemDimensions:
    Length: 9000mm;
    Vacuum pump:
    Power: 5.5KW*2sets;
    Vacuum meter
    Quantity: 1pc;Vacuum degree: 0.03~0.06Mpa;
