HDPE PE Cable Micropipe Bundle Casing Pipe Extrusion Machine Production Line

Plastic Pipe Extrusion Line PPR LDPE PE Bundle Microduct Communication Pipe

Plastic HDPE Pipe Extrusion Production Line / makeing machine/makeing facility

Professional HDPE PE PP PPR Materials Pipe Extrusion Machine / Production Line Machinery Specification:

Product Introduction
Bundle Bundles Pipe Tube Extrusion Line
This PE Bundle Microduct Communication Pipe machine is used to produce the new type communication pipe, called tube bundle. The tube bundle is made by one micro duct or more than one micro ducts grouped according to a certain arrangement order with outer sheathing layer. It can hold more conduits in the limited space.
This is a whole production line for making 12 ways or more ways multiduct for cable communication. First, making a single microduct, then dundling up the muitiple ducts together.This machine can the sheath Bundled microduct for 2 way, 4 way, 7 way duct and 12 way duct and others request with customer needs

Product Details

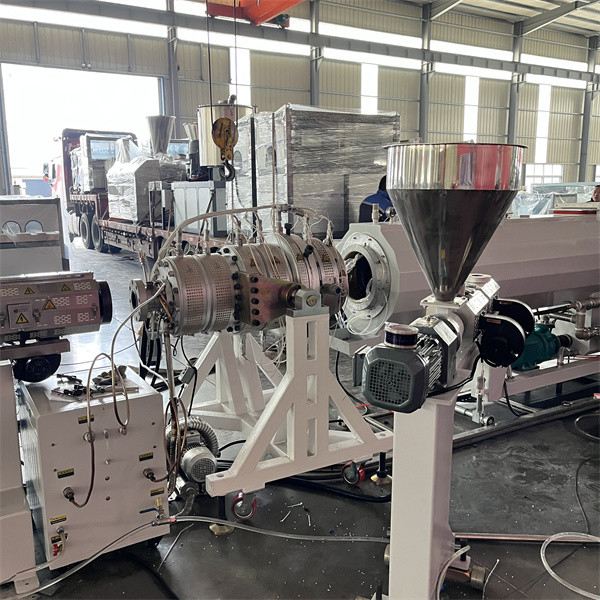

co-extrusion mold
1. Material of mold body: 40Cr.
2. Structure of mold: High pressure volumetric mold, can realize high speed, high precision production.
3. Mandrel and die: Material is High class "H13" die steel, precision grinding.

Cooling tank:
1. Specification: Length 6000mm, width 180mm, depth 180mm, made by SUS304 material, opened structure.
2. Water circulation system: Circulation water reservoir (SUS304)—1set, circulation water reservoir built-in level control device

puller:
1. Belt: Multi layer wear-resistant belt, 2pcs.
2. Specification of belt: Effective contact length 800mm, width 80mm, clamping height 0-80mm.
3. Speed setting: 6.0 - 60m/min.

QINGDAO CUISHI PLASTIC MACHINERY CO.,LTD was established in 1999 and has more than 20 years of practical experience in physical factories. From design and production to production formula and installation and debugging, we provide a full set of turnkey projects. Our company mainly operates PE, ABS, PA single-wall and double-wall corrugated pipe machines, PE single-layer, three-layer and five-layer pipe production lines, PPR, PERT various floor heating pipe production lines, PVC drainage pipes, water inlet pipes, threading pipes, Various pipes, profiles, plates, and sheet production equipment such as fresh air corrugated pipes can be designed and processed according to samples. Because we are professional, we are more focused.

Our service tenet: think about what customers think, consider their concerns, and learn to think from their perspective, so that our services can be more warm!

We focus on the quality control, and hope to build a long time business relationship with customers.whatsapp 008615753291269

Our factory

Our corrugated pipe machine workshop
