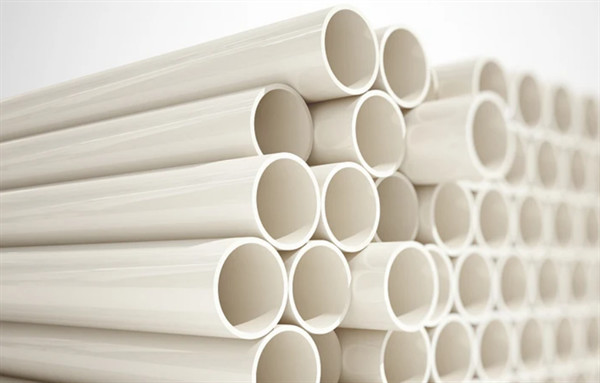

Conical Twin Screw Extruder Plastic Extrusion Machine Pvc Pipe
Extruders
| 1 | Screw Diameter | mm | ￠65/132 |
| 2 | Screw length | mm | 1400 |
| 3 | Material of Screw and Barrel | / | 38CrMoAlA Nitrogen Treatment |
| 4 | Depth of nitration case | mm | 0.4-0.7mm |
| 5 | Hardness of nitration | HV | >940 |
| 6 | Roughness of the surface | Ra | 0.4un |
| 7 | Hardness of double alloys | HRC | 55-62 |
| 8 | Depth of double alloys | mm | >2 |
| 9 | Heating Power | KW | 24 |
| 10 | Barrel Heating | / | Casting Aluminum Heater |
| 11 | Barrel Cooling | / | Low noise blower cooling |
| Transmission case |
| 1 | Applicable standard | / | JB/T9050.1-1999 |
| 2 | Material of gear and shaft | / | Adopt high strength alloy, carburizing and quenching, grinding |
| 3 | Gear precision and hardness | / | 6grade, HRC 54-62 |
| 4 | Oil sealing | | All sealing adopt good products |
| 5 | Screw Safeguard | / | Automatic screw displacement alarm |
| Dosing feeding device |
| 1 | Motor power | KW | 1.5 |
| 2 | Feeding speed regulator | / | frequency conversion |
| 3 | Can be adjusted separately or synchronized adjusting with
extrusion. |
| Motor and electric system |
| 1 | Motor Power | KW | 31KW innovance servo motor (AC motor)---Xima brand |
| 2 | Speed adjusting mode | / | Frequency conversion adjusting |
| 3 | Max Output Capacity | Kg/h | 250 |
| 4 | Vacuum exhaust system | / | With vacuum pump |
Plastic extrusion machinery is used in the manufacturing process of
plastic products. It is a specialized type of machinery that melts
raw plastic material and then shapes it into a continuous profile.
The process involves feeding plastic pellets or granules into a
hopper, where they are heated and melted. The molten plastic is
then forced through a die, which determines the shape and size of
the final product. The extruded plastic is cooled and solidified
before being cut or wound into the desired length or shape.
Plastic extrusion machinery is commonly used in various industries,
including packaging, construction, automotive, and consumer goods.
Some examples of products that can be produced using plastic
extrusion machinery include pipes, tubes, profiles, sheets, films,
and rods.
The machinery used for plastic extrusion can vary depending on the
specific application and requirements. Here are some common types
of plastic extrusion machines:
Different extrusion processes and applications may require specific
variations or additional equipment to meet the desired
specifications. It's important to consider factors such as the type
of plastic material, production volume, product dimensions, and
quality requirements when selecting the appropriate machinery for a
specific application.
