Product Application

Features.
1. High toughness and good seismic performance;
2. The connection is reliable;
3. Low density, light weight, easy to handle and install
4. Can resist a variety of chemical media corrosion;
5. Excellent hydraulic performance, the wear resistance coefficient is only 0.009;
6. Long service life, up to 50 years;
7. Good hygiene and environmental performance;

HDPE double wall corrugated pipe
High Density Polyethylene (HDPE) Double Wall Corrugated Sewer and Drainage Pipes are for gravity and low pressure sewerage and drainage such as waste water, sanitary sewer and storm sewerage for municipal or industrial use. The pipes provide important


Application:
Sewer and drainage
drains for terrace and other residential units in housing schemes
Perimeter drains for commercial, industrial units and individual factories
As collector drains in subsoil system in road, highway, open field, stadium, retaining wall or parking space
As collector drains in subsoil system, sewerage treatment plant sludge drying bed under drains

corrugated pipe is mainly used for water drainage system. It is a fully computer controlled line. It features high and stable output capacity, and highly automatic operation. For HDPE, you can choose high efficient single screw extruder. For PVC, you can choose conical twin-screw extruder or parallel twin- screw extruder. Forming system consists mould and corrugator.

Mould blocks can be easily changed and they have air or water cooling system.

double wall corrugated pipe machine is a type of manufacturing equipment used to produce double wall corrugated pipes. These pipes are commonly used in various applications such as drainage systems, sewage systems, cable protection, and telecommunications.

The machine typically consists of several components and stages that work together to produce the double wall corrugated pipes. Here is a general overview of the process:

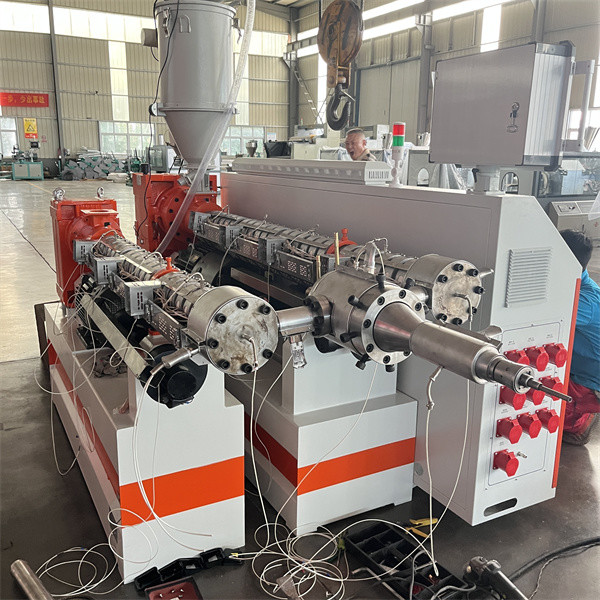

Extrusion System: The extrusion system is responsible for melting and extruding the raw material, usually high-density polyethylene (HDPE), into a continuous pipe. The HDPE resin is fed into the extruder, where it is heated and melted before being forced through a die. The die determines the shape and size of the pipe.

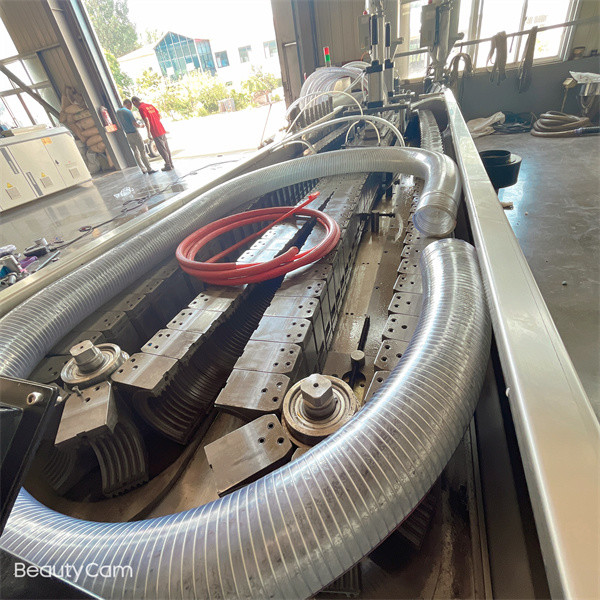

Corrugation System: HDPE passes through the die, it enters the corrugation system. This system consists of a set of corrugating rolls or molds that impart the characteristic corrugated pattern onto the pipe. The rolls or molds shape the pipe while it is still in a semi-molten state.

Cooling and Forming: After the corrugation process, the pipe enters a cooling section to solidify the material. Cooling can be achieved through various methods, such as air cooling or water cooling. Once the pipe is cooled and solidified, it is formed into its final shape and cut to the desired length. The forming process may involve additional molds or shaping equipment to achieve the required dimensions.

Double Wall Construction: In this stage, a second layer of HDPE is added to create the double wall structure. The second layer is typically extruded onto the outer surface of the corrugated pipe. The two layers are then bonded together to form a strong and durable double wall pipe.

Quality Control and Finishing: The manufactured pipes undergo quality control checks to ensure they meet the required specifications and standards. This may include inspecting the dimensions, wall thickness, and overall quality of the pipes. After passing the quality control checks, the pipes can undergo additional finishing processes, such as printing or marking for identification purposes.

QINGDAO CUISHI PLASTIC MACHINERY CO.,LTD was established in 1999 and has more than 20 years of practical experience in physical factories. From design and production to production formula and installation and debugging, we provide a full set of turnkey projects. Our company mainly operates PE, ABS, PA single-wall and double-wall corrugated pipe machines, PE single-layer, three-layer and five-layer pipe production lines, PPR, PERT various floor heating pipe production lines, PVC drainage pipes, water inlet pipes, threading pipes, Various pipes, profiles, plates, and sheet production equipment such as fresh air corrugated pipes can be designed and processed according to samples. Because we are professional, we are more focused.

Our service tenet: think about what customers think, consider their concerns, and learn to think from their perspective, so that our services can be more warm!

We focus on the quality control, and hope to build a long time business relationship with customers.whatsapp 008615753291269

Our factory

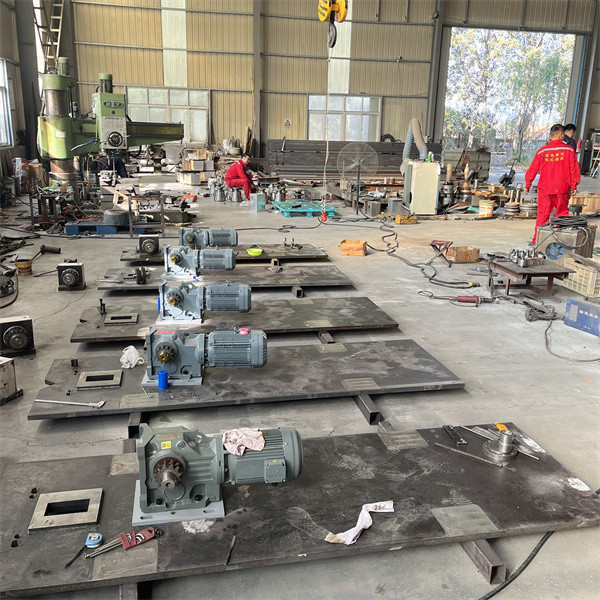

Our corrugated pipe machine workshop
