Industry / Agriculture Drip Irrigation Pipe Machine , Flexible PVC Pipe Manufacturing Machine

Ask Lasest Price
Brand Name :	Wangyuan
Model Number :	Sj65/30 pvc suction pipe extruder
Certification :	SGS
Price :	11428-27143
Payment Terms :	T/T
Supply Ability :	56 sets
Delivery Time :	35 days

Add to Cart

Product Details
Company Profile

Industry / Agriculture Drip Irrigation Pipe Machine , Flexible PVC Pipe Manufacturing Machine

Drip Irrigation Hoses Production Lines PVC Spiral Reinforce Pipe Machine

Flexible Plastic Reinforced PVC Helix Water Pump Suction Discharge Spiral Tube Pipe Conduit Line Hose

Plastic PVC spiral suction reinforced soft hose pipe extruder extrusion production line

PVC Suction Soft Spiral Reinforced Hose Extruder

Pressureproof PVC Spiral Suction Reinforced Pipe Extruder Plastic Spiral Water Pipe Making Machine

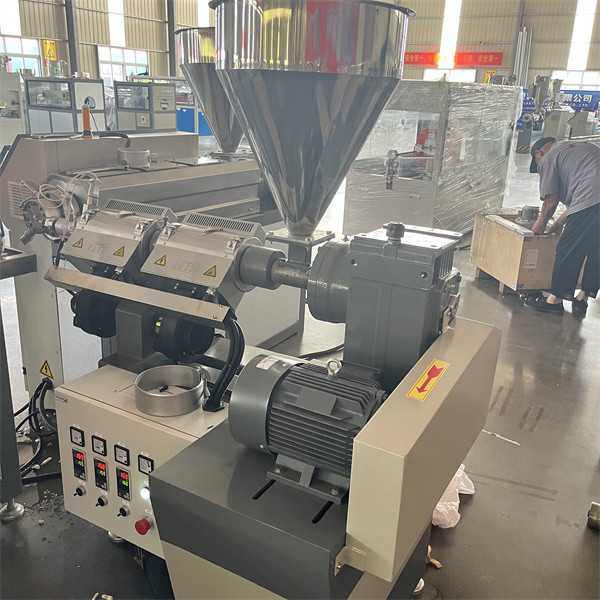

This PVC Suction Soft Spiral Reinforced Hose Extruder is designed to produce PVC soft spiral reinforced pipe, which is widely used in industry , agriculture , architecture , irrigation market and so on. PVC Suction Soft Spiral Reinforced Hose Extruder consists of two sets single screw plastic extruders, mould, forming machine,cooling water tank, rotatory haul off machine and winder.

Machine Description

PVC Spiral Suction Hose Making Machine

PVC Reinforced Suction Hose Extrusion Line

PVC Flexible Suction Hose Extrusion Line

Production Line Process

Raw material+additive→Mixing→Granulating→Conveying feeding→Single screw extruder→Steel wire forming machine→Extruding
mould→Cooling water tank→Belt haul-off→Winder→packing

Extruder model	First extruder	SJ-55x30	SJ-65 x30
Extruder model	Second extruder	SJ-45x25	SJ-65x25
Diameter range(mm)		Ø 25- Ø50	Ø64- Ø 150
Haul-off speed(m/min)		2-10	0.2-2
Max. output (kg/h)		20-40	40-75
Total installed power(kw)		31	58
Actual power consumption(kw)		21	40
Overall dimension LxWxH(m)		16x4x2	16x5x2.5
Overall weight(kg)		3ton	4ton

Advantages

1) PVC Suction Soft Spiral Reinforced Hose Extruder is used to produce PVC soft spiral reinforced transparent pipe;

2) PVC Suction Soft Spiral Reinforced Hose Extruder has dvantages of extrusion resistance, corrosion resistance, static electricity resistance, anti-high pressure and good running;

3) It's Suitable for conveying high pressure or combustible gas and liquid, heavy suction and delivery of liquid sludge;

4) PVC Suction Soft Spiral Reinforced Hose Extruder is mainly used in machinery, chemical industry, building, irrigation and vacuum pump, etc.

Specification

Inner Diameter		Outer Diameter	Working Pressure		Burst Pressure		weight	coil
inch	mm	mm	bar	psi	bar	psi	g/m	m
3/4	19	23	6	90	18	270	230	50
1	25	29	6	90	18	270	290	50
1-1/4	32	38	6	90	18	270	400	50
1-1/2	38	46	6	90	18	270	650	50
2	50	56	5	75	15	225	700	50
2-1/2	63	71	4	60	12	180	1170	30
3	75	83	3	45	9	135	1300	30
4	100	110	3	45	9	135	2300	30
5	125	137	3	45	9	135	3300	30
6	152	166	2	30	6	90	5500	20
8	200	216	2	30	6	90	6700	10
10	254	270	2	30	6	90	10000	10
12	305	329	2	30	6	90	18000	10
14	358	382	2	30	6	90	20000	10
16	408	432	2	30	6	90	23000	10
