    Low Noise Plastic Corrugated Pipe Machine 55KW DWC Pipe Manufacturing Machine

    Ask Lasest Price
    Brand Name : wangyuan
    Model Number : Plastic Pipe Corrugated Extrusion Line
    Certification : SGS
    Price : 45888-49999usd
    Payment Terms : L/C T/T
    Supply Ability : 5 set per month
    Delivery Time : 50days
    • Product Details
    • Company Profile

    Low Noise Plastic Corrugated Pipe Machine 55KW DWC Pipe Manufacturing Machine

    China Plastic Pipe Corrugated Extrusion Line Plastic Machines


    HDPE Pipe Production Line Double Wall Corrugated Pipe Machine 50-160mm

    Plastic Pipe Machine Corrugated Pipe Production Line HDPE Pipe Extrusion Line

    Double Wall Corrugated Pipe Machine for Drainage/Sewege/Stormwater/Cable Ducting/Electric Conduit/Fresh Air Ventilation

    Plastic Flexible Pipe Extruder HDPE/UPVC Double Wall Corrugated Pipe Making Machinery

    Plastic Pipe Extruder Making Machine Corrugated Tube Hose Pipe Manufacturing Machine

    Single Screw Extruder Pipe Extrusion Corrugated Pipe Tube Hose Extruder Making Machine

    HDPE/PVC Double Wall Corrugated Pipe Making Machine

    Double Wall Corrugated Pipe Production Line

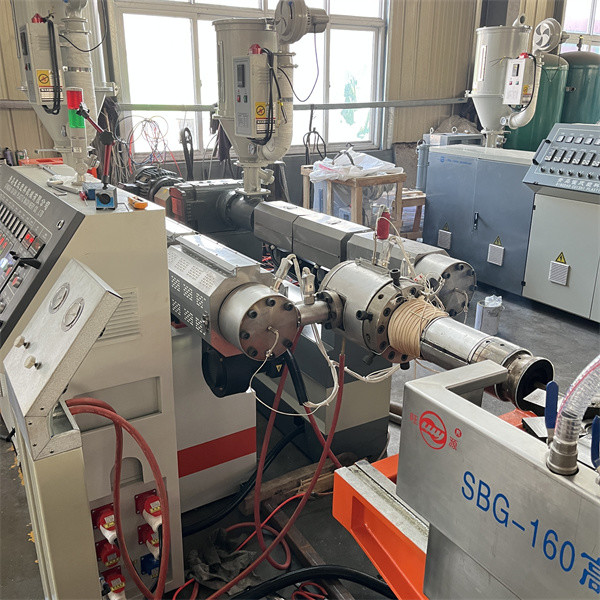

    Double wall corrugated pipe extrusion machine


    DESCRIPTION OF GOODS:

    Name of Commodity


    Quantity


    HDPE PVC DOUBLE wall corrugated pipe extruder line

    1.high speed SJ90/33 single screw extruder for out wall for 140kg/h extruder

    2. SJ50/30 single screw extruder for inner wall with 60kg/h output

    3.Die head for 50.75.90.110.160.200mm

    4.mould for pipe diameter 50.75.90.110.160.200mm

    5.high speed calibration table with 2500kg weight

    6.Cutter machine

    7. winder machine

    1 set
    FOB qingdao USD

    HDPE/UPVC underground drain pipe

    Corrugated Pipe Making Line Corrugated Double Wall Pipe Machine

    Project evaluation

    1.1 Basic Infrastructure (Provided by customer)

    a. Electricity network: can adjustable according to your local voltage standard.

    b. Wire/cables: wires/cables from customer’s general control cabinet to the main control cabinet for PVC corrugated pipe production line; all electrical cable from the main control cabinet to each machine.

    c. Water supply: main water pipe line supply and water pipes to machines

    d. Compressed air supply: necessary compressed air for mould, forming machine, winder

    e: lubrication oil: for reducer gearbox

    1.2 Energy consumption:

    a. Electricity requirement

    Total Install power: 55KW.

    Actual power consumption percentage: 70% of total power

    b. Labor requirement

    Max. Qty. of labors: 1 person

    c: compressed air requirement: 0.4Mpa-0.6Mpa


    ItemDescriptionUnitSJ90/33
    1Screw diametermm90
    2L: D33;1
    3Motor powerKWAC45
    4Brand motorxima
    5Motor speed adjusting modedelta Frequency conversion
    6Inverterdelta
    8Extrusion outputKg/h160kg/h
    9Material of screw and barrel38CrMoAlA,Nitrogen treated
    10Nitrogen depthmm0.5-0.8
    11Heating powerKW4 zones, 18kw
    12Cooling powerKW4 zones, 250w×4
    13Gear boxHard gear surface, low noise design

    1Material of forming mould40Cr, nitrogen treated
    2Forming mould1 set
    3Quantity of mould block38 .46.60. pairs
    4Forming machine typeHorizontal type
    5Forming mould moving wayCircle
    6Drive motor power7.5kw
    7Inverterdelta
    8Cooling wayAir cooling
    9Power of blower180w×3

    Low Noise Plastic Corrugated Pipe Machine 55KW DWC Pipe Manufacturing MachineLow Noise Plastic Corrugated Pipe Machine 55KW DWC Pipe Manufacturing MachineLow Noise Plastic Corrugated Pipe Machine 55KW DWC Pipe Manufacturing MachineLow Noise Plastic Corrugated Pipe Machine 55KW DWC Pipe Manufacturing Machine
