HDPE/PVC Double Wall Corrugated Pipe Making Machine
Double Wall Corrugated Pipe Production Line
PE/HDPE/PVC double wall corrugated pipe extrusion line adopts
extruding and forming process, it has the featuresof reliable
quality and high efficiency.Compared with other plastic pipe wall
structure ,double wall corrugated pipe has excellent wall structure
design,its low weight reach the lower production cost and improve
the market competitiveness.The pipe is widely used in various field
instead of concrete pipe and iron pipes,because it has excellent
features such as:easy connected and accessories installed, and
quality reliable.
HDPE/PP/PVC Pipe/Tube/Double Wall Corrugated/Extrusion Line
Producing Machine
50-160mm HDPE double wall corrugated pipe DWC tube making machine
manufacture
Product Application
50-160mm HDPE double wall corrugated pipe making machine
HDPE and LDPE double wall corrugated pipe machine line
Plastic Pipe Etruder Machine
Supply gas and water supply PVC HDPE double pipe machine
Double wall corrugated pipe making machine
HDPE/PVC Double Wall Corrugated Pipe Machine
rief introduction of double wall corrugated pipe machine:
PVC PE double wall corrugated pipe machine/extrusion line adopts
extruding and forming process, has the features of reliable quality
and high efficiency. Compared with other plastic pipe wall
structure, double wall corrugated pipe has excellent wall structure
design, its low weight reach the lower production cost and improve
the market competitiveness.
It is widely used in various field instead of concrete pipe and
iron pipes, because it has excellent features such as: easy
connected and accessories installed, and quality reliable.
pipe production machine for waste water
Features
1. High toughness and good seismic performance;
2. The connection is reliable;
3. Low density, light weight, easy to handle and install
4. Can resist a variety of chemical media corrosion;
5. Excellent hydraulic performance, the wear resistance coefficient
is only 0.009;
6. Long service life, up to 50 years;
7. Good hygiene and environmental performance;
8. Better resistance to slow crack growth (SCG) and rapid crack
propagation (RCP).
HDPE double wall corrugated pipe
High Density Polyethylene (HDPE) Double Wall Corrugated Sewer and
Drainage Pipes are for gravity and low pressure sewerage and
drainage such as waste water, sanitary sewer and storm sewerage for
municipal or industrial use. The pipes provide important
benefits and distinct advantages for sewer and drainage
applications.
odel | cs110 | cs250 |
Pipe diameter (mm) | DN/ID 40-110 | DN/ID 110-250 |
Die head,mould | 40-160mm | 110-250mm |
Forming machine model | SBCS-160 | SBGC-250 |
Spray cooling tank | SGL-160 | SGL-250 |
Non-dust cutting machine | SGCS-160 | SGQ-250 |
Stacker | SGD-250 | SGD-500 |
Production capacity(kg/h) | PE:160 | PE:230 |
Mold quantity(pair) | 72 | 72 |
Product speed | 3-6 m/min | 2-3 m/min |
Specification:
Size: DN200 to DN800.
Ring stiffness: SN4, SN8.
Connection: Socket with rubber ring.
Length: 6 Meters/piece.
Application:
Sewer and drainage
drains for terrace and other residential units in housing schemes
Perimeter drains for commercial, industrial units and individual
factories
As collector drains in subsoil system in road, highway, open field,
stadium, retaining wall or parking space
As collector drains in subsoil system, sewerage treatment plant
sludge drying bed under drains
corrugated pipe is mainly used for water drainage system. It is a
fully computer controlled line. It features high and stable output
capacity, and highly automatic operation. For HDPE, you can choose
high efficient single screw extruder. For PVC, you can choose
conical twin-screw extruder or parallel twin- screw extruder.

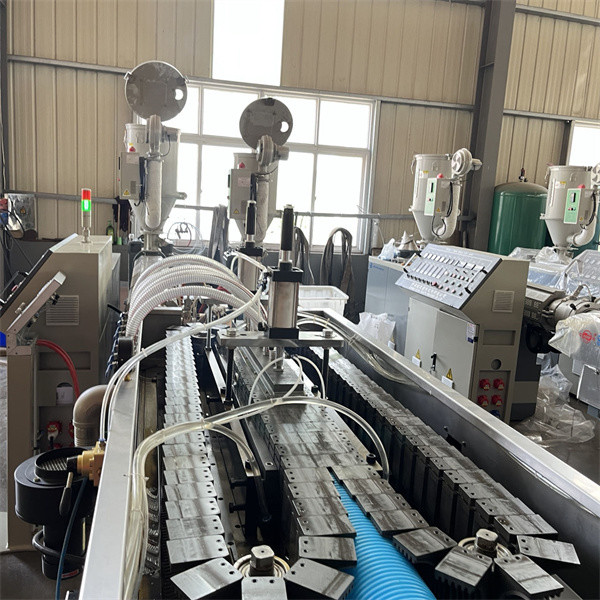

Forming system consists mould and corrugator.
Mould blocks can be easily changed and they have air or water
cooling system. The belling process is on line. High precision
cutting can be guaranteed by cutting machine. The production line
can also be equipped with SIEMENS PLC system.
| Type Pipe | Diameter(mm) | HDPE Output(kg/h) | MAX Speed(m/min) |
| CS-160 | 50-160 | 300-400 | 5-7 |
| CS-500 | 200-500 | 600-700 | 3 |
| CS-800 | 200-800 | 1000-1100 | 3 |
| CS-1200 | 600-1200 | 1000-1200 | 1 |
