150-250kg/H PP PE HDPE Pipe Machine Plastic Water Pipe Manufacturing Machine

Ask Lasest Price
Brand Name :	Wangyuan
Model Number :	PPH pipe extrusion plastic extruder
Certification :	SGS
Price :	39888-45333usd
Payment Terms :	TT , L/C
Supply Ability :	28 sets
Delivery Time :	60 days

Add to Cart

Product Details
Company Profile

150-250kg/H PP PE HDPE Pipe Machine Plastic Water Pipe Manufacturing Machine

Plastic Water Pipe Tube Production Machine Extrusion Line Making Machine

PP PE HDPE Pipe Machine

PE pipe extrusion line is mainly used for producing agricultural
irrigation pipes, drainage pipes, gas pipes,water supplying pipes ,

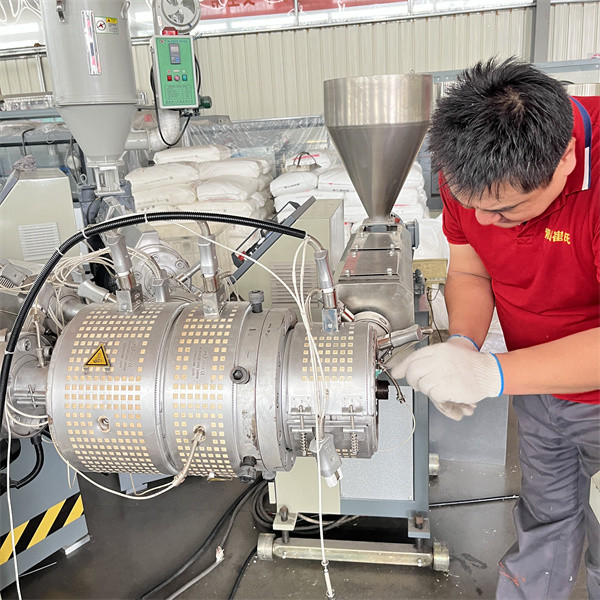

and cable conduit pipes,etc. The unit consists of single screw
extruder , die head, vacuum cooling tank,haul-off machine,
planetary (swarf less/ chip free cutter / no dust cutter) cutting
machine, winder stacker and so on.

Our production line is equipped with gravimetric dosing unit, and
ultrasonic thickness indicator. Turn key solution can be provided,
Like laser printer crusher, shredder, water chiller, air compressor
etc. to achieve high-grade and automatic tube production.
Through long time and continuous innovation and testing, we has
developed the new generation PE pipe extrusion line with high
automation, high speed, high reliability, low energy consumption.
Our PE pipe extrusion can process wide range of material, including
HDPE, LDPE, PP, PPR, PPH, PPB, MPP, PERT, etc.
Produce process :
Raw material+ master batches → Mixing → vacuum feeding → material
dryness → single screw extruder →color string extruder → spiral
mould → vacuum calibration tank → spray cooling water tank
→spray-code printer → haul-off → no-dust cutter → Double disc
Winding/ Stacker → finished product inspecting &packing
PRODUCT SPECIFICATIONS
Model
PE63
PE110
PE160
PE250
PE450
PE630
Diameter Range
16-63mm
20-110mm
50-160mm
90-250mm
160-450mm
315-630mm
Extruder Model
SJ65/33
SJ65/33
SJ75/33
SJ75/33
SJ90/33
SJ120/33
Extruder Capacity
80-120kg/h
150-200kg/h
220-280kg/h
250-350kg/h
450-500
550-600kg/h
Motor Power
30kw
55kw
75kw
90kw
160KW
220kw

150-250kg/H PP PE HDPE Pipe Machine Plastic Water Pipe Manufacturing Machine
